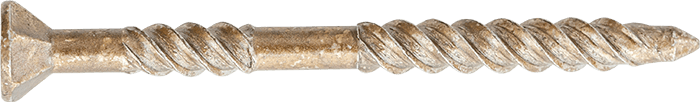

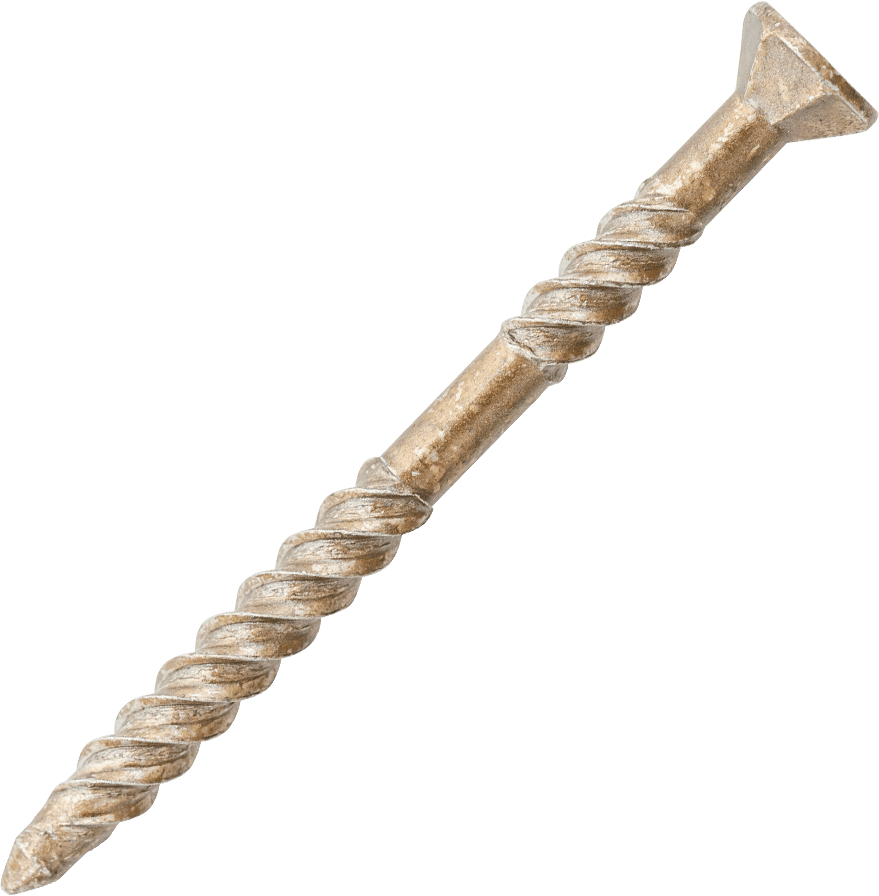

Cutting-edge Nail TechnologyDOUB LOCK NAILⓇ

DS NailⓇ

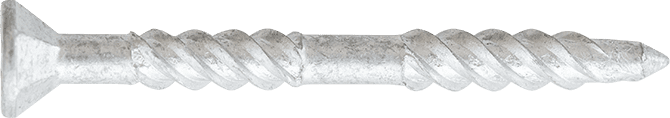

Drivable Screw Nails (PAT)

Harness the strength of a self-rotating screw,
while using a nail gun to drive it in place.
Can also be removed like a screw.Drivable Screw Nails

Exerts the same fastening force as
a screw and can be inserted
with a nail gun.

Unlike conventional screw nails,
the entire nail is embedded in the material when driven in.
This allows you to utilize the full strength
of the nail without creating open space between materials.

Products

  • DLN-41
  • Iron Ruspert
    L = 41mm Wire diameter = 3.0mm
    (Nail Gun Size: 65 mm or more)

  • DLN-51
  • Iron Ruspert
    L = 51mm Wire diameter = 3.2mm
    (Nail Gun Size: 75 mm or more)

Jointly-Developed ProductsKANKEI in collaboration with Chanel Original

Fastens using the entire nail!
Holds strong and
doesn't creak even with thin wood.

For Chanel Original's external wooden wall material

  • DLN-51CH
  • Length: 51mm
    Thickness: Wire Diameter 2.85mm
    Thread Outer Diameter 3.7mm
    Head: φ5.5mm Rounded Head
    Material: Stainless steel SUS XM7
    Painted Nails

In Development

C-shaped steel and aluminum are being developed.
Various type of nails are being developed.

How to use DOUB LOCK NAIL

DLN-51
  • Quick one-handed insertion
  • Drives with a nail gun!
    Improved safety for one-handed operation.
  • Easy Removal
  • No pry bar required! Akin to removing a screw.
    Able to use with an impact driver!
    Minimize damage to building materials!
DLN-41

MOVIE

5 Features

  • ONE
    Safety
    It can be utilized with a Can be used with a nail gun instead of impact force.
    Improved safety for one-handed operations on scaffolds, roofs, stepladders, etc.
  • TWO
    Shortened Operation Times
    Screw workability is highly improved and operation times shortened.
  • THREE
    Powerful
    Powerful withdrawal resistance. Twice that of a Ring Shank Nail and Screw Shank Nail.
  • FOUR
    Reusable
    Minimize material damage. Easy to disassemble and separate with impact driver with the head of the nail ⊕
  • FIVE
    Fastening to metal
    There are also types that can fasten to building materials such as C-shaped steel and aluminum.

Usage Examples

Fastening plywood
and wood materials to various bases.(Please use DLN-41 or DLN-51 based
on the strength required or the component pressure.)

  • Fastening plywood to the base of roofs
  • Fastening plywood to the base of walls
  • Fastening plywood to the base of stairs
  • Fastening plywood to the base of floors
  • Fastening plywood for various fixtures
  • Fastening plywood to concrete frames
  • Fastening new plywood on top of
    old plywood during renovations, etc.
  • Production of pallets used in transportation
  • Production of packaging used in transportation
*Please take extra care on areas that require
the installation of load-bearing walls and other safety-related structures.
2×4 load-bearing walls have been certified in Japan
with 3.0 times the weight-bearing ability when using DLN-51.
Supports most applications
where other nails and screws such as coarse thread types can be used.
  • Usage Examples
  • ★ Fastening to thin steel sheet bases(Bargeboards, fascia, roofing materials, exterior wall materials)
    *Stainless steel and non ⊕ cross-head type products are under consideration.
  • Usage Examples
  • ★ Fastening some resin materials(Materials and shapes that do not break when nails and screws are inserted)
  • Usage Examples
  • ★ Fastening various types of plaster board

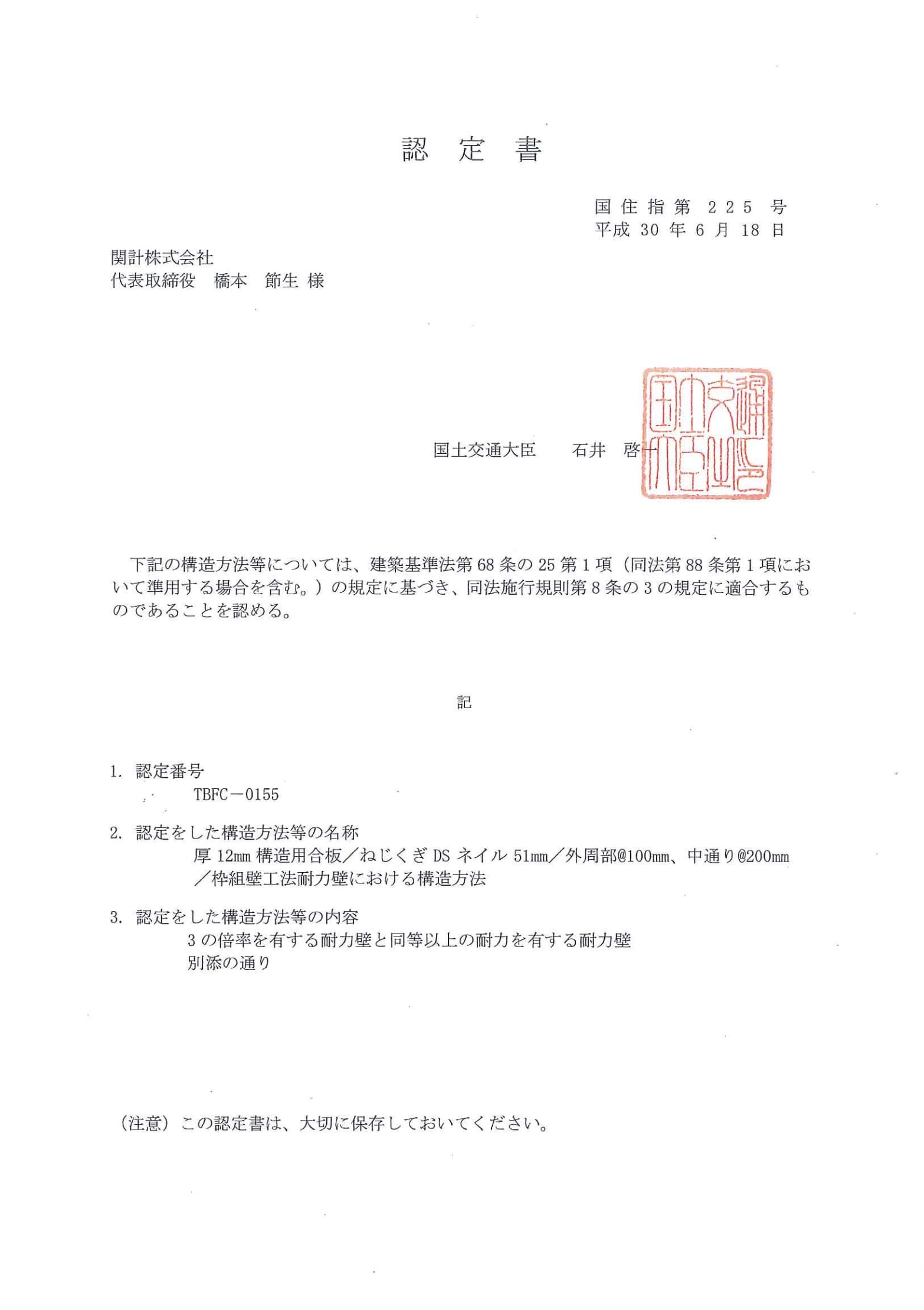

CertificationCertified by the Ministry of Land, Infrastructure,
Transport and Tourism of Japan as a nail for platform wood frame construction(2×4)

Certified by the Ministry of Land, Infrastructure, Transport and Tourism
  • 1. Certification Number: TBFC-0155
  • 2. Names of Structural Methods
  • Plywood thickness: Special Class 2 or higher 12mm
    No specific variety of wood
    Screw Nail: DS nail 51mm
    Outer part @ 100mm Middle @ 200mm
    Structural method for load-bearing framed wall constructions
  • 3. Construction Details
  • Load-bearing strength equal to or exceeding that of loading-bearing walls with a rating of 3.

Other
performance

DLN offers around 4 times the withdrawal resistance of smooth shank nails and two times that of ring shank nails and screw shank nails.

Although it drives like a nail,
it features the same withdrawal resistance as a screw
VIEW MORE

Never breaks!DOUB LOCK NAIL

Ministry of Land, Infrastructure,
Transport and Tourism of Japan 2x4 certification TBFC-0155

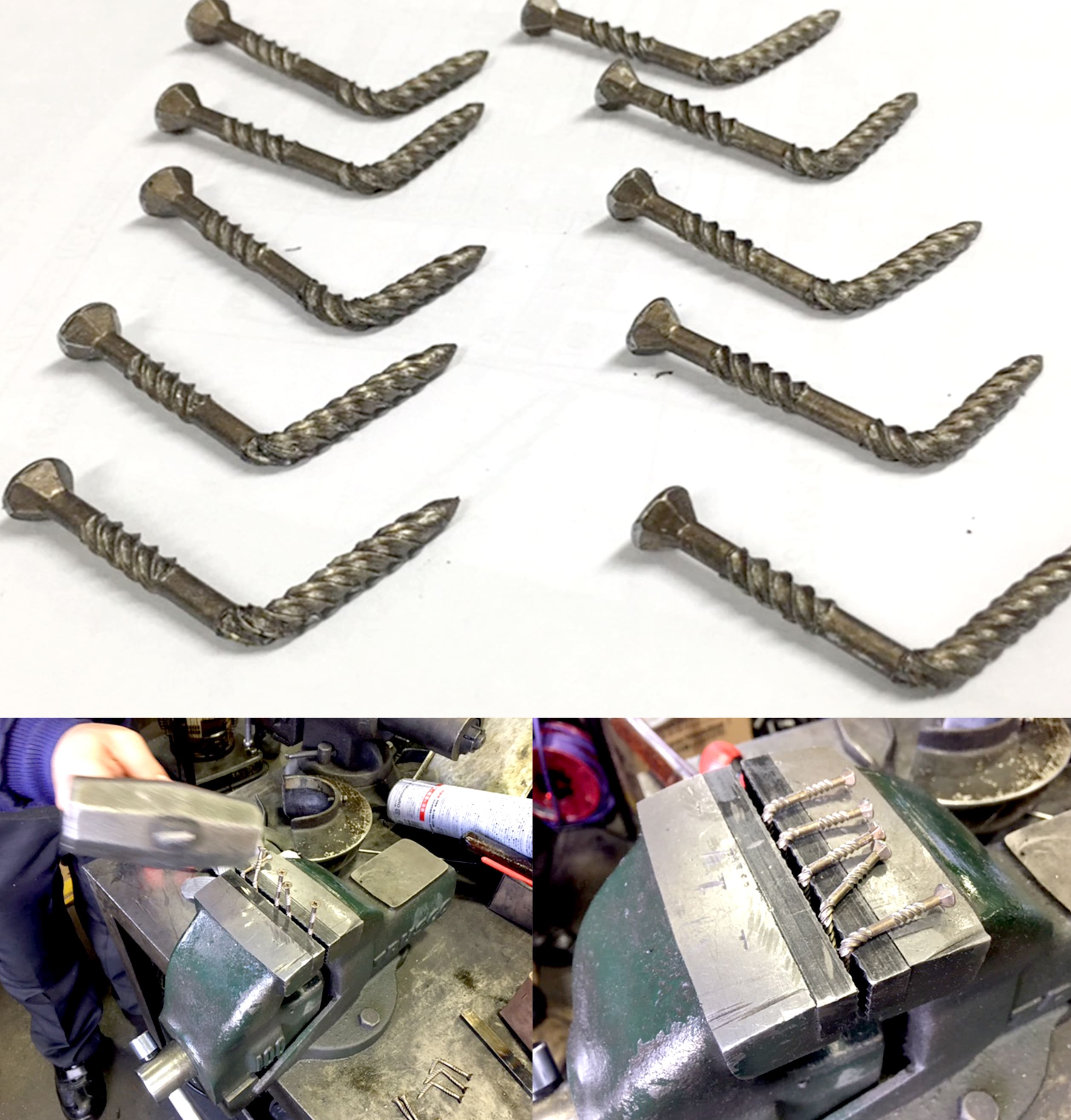

Never breaks even when bent 90°!
DLN carries a self-rotating driving force.
As it does not require case hardening like other screws,
it can deliver an elasticity that prevents it from breaking even when bent 90°.
Certified by the Ministry of Land, Infrastructure,
Transport and Tourism of Japan for 2x4 load-bearing walls.

DOUB LOCK NAIL

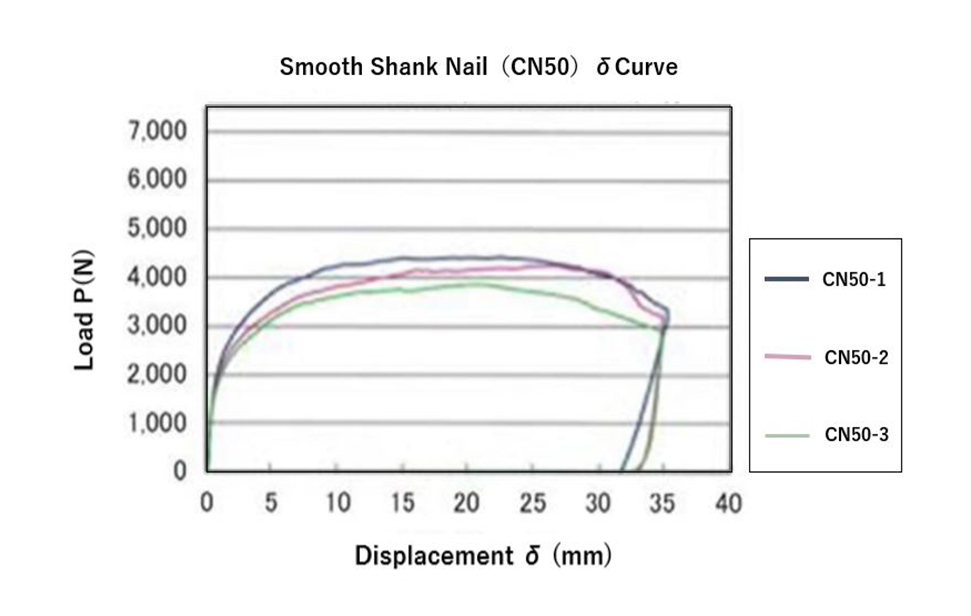

Smooth Shank Nail-50 (CN50) Direct shear testTest Results

*Comparison of shear strength (1.67 times) after fastening 12m/m structural plywood
to an SPF material.
DLN-51 has a load-bearing strength 1.67 times that of CN-50 types.
